SemiPOL High Precision Quantitative Grinding Machine

Product Description

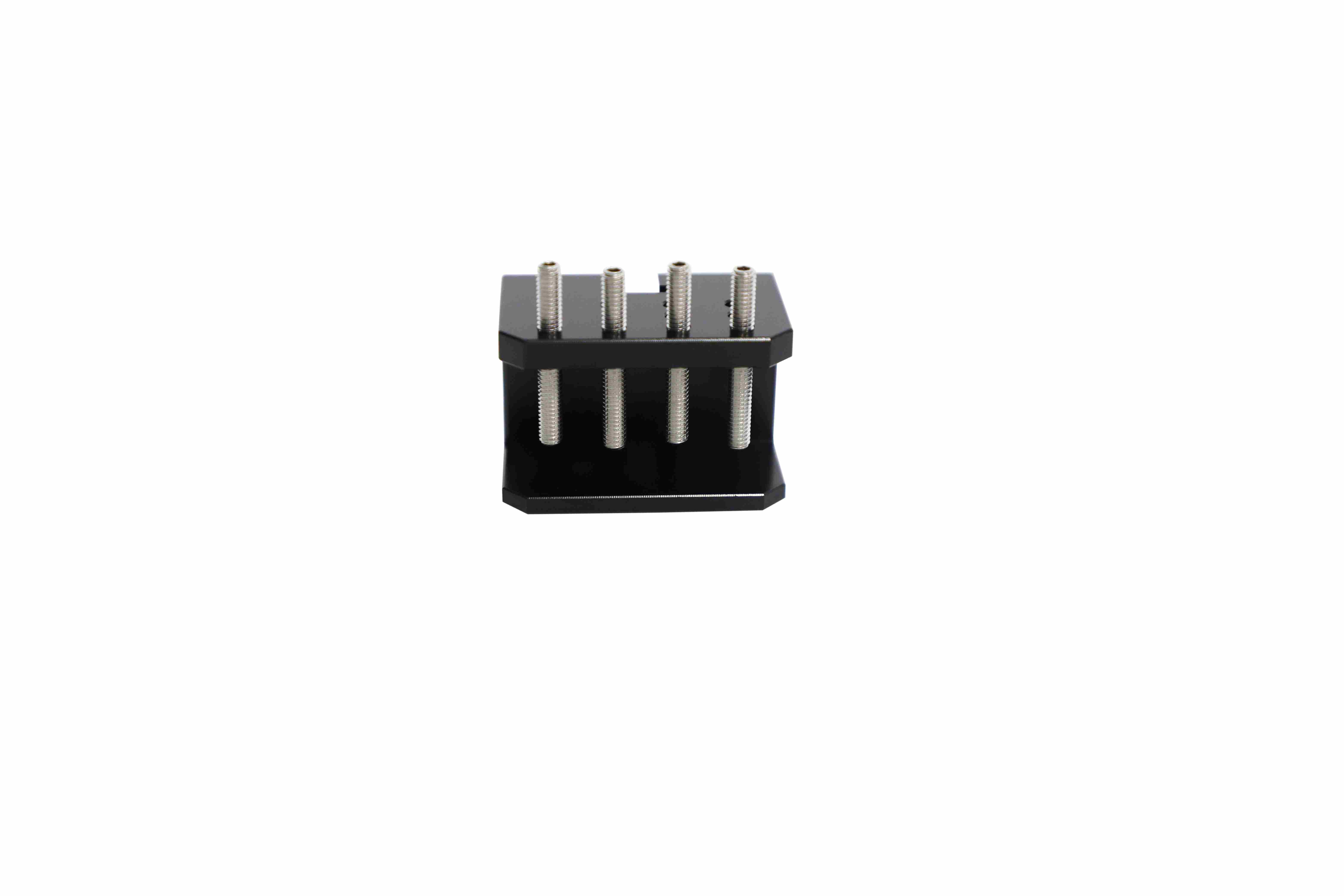

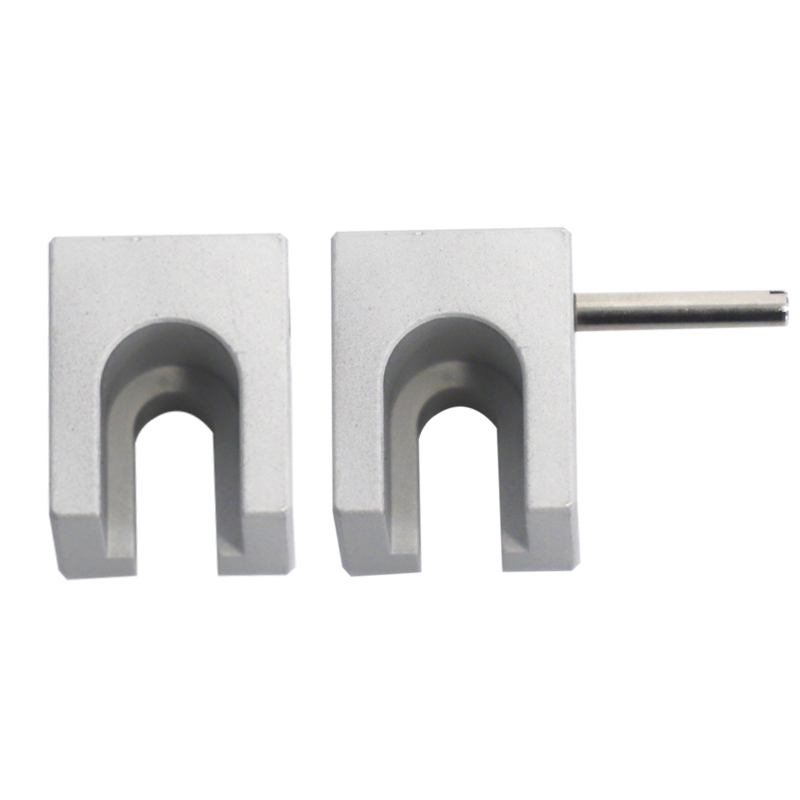

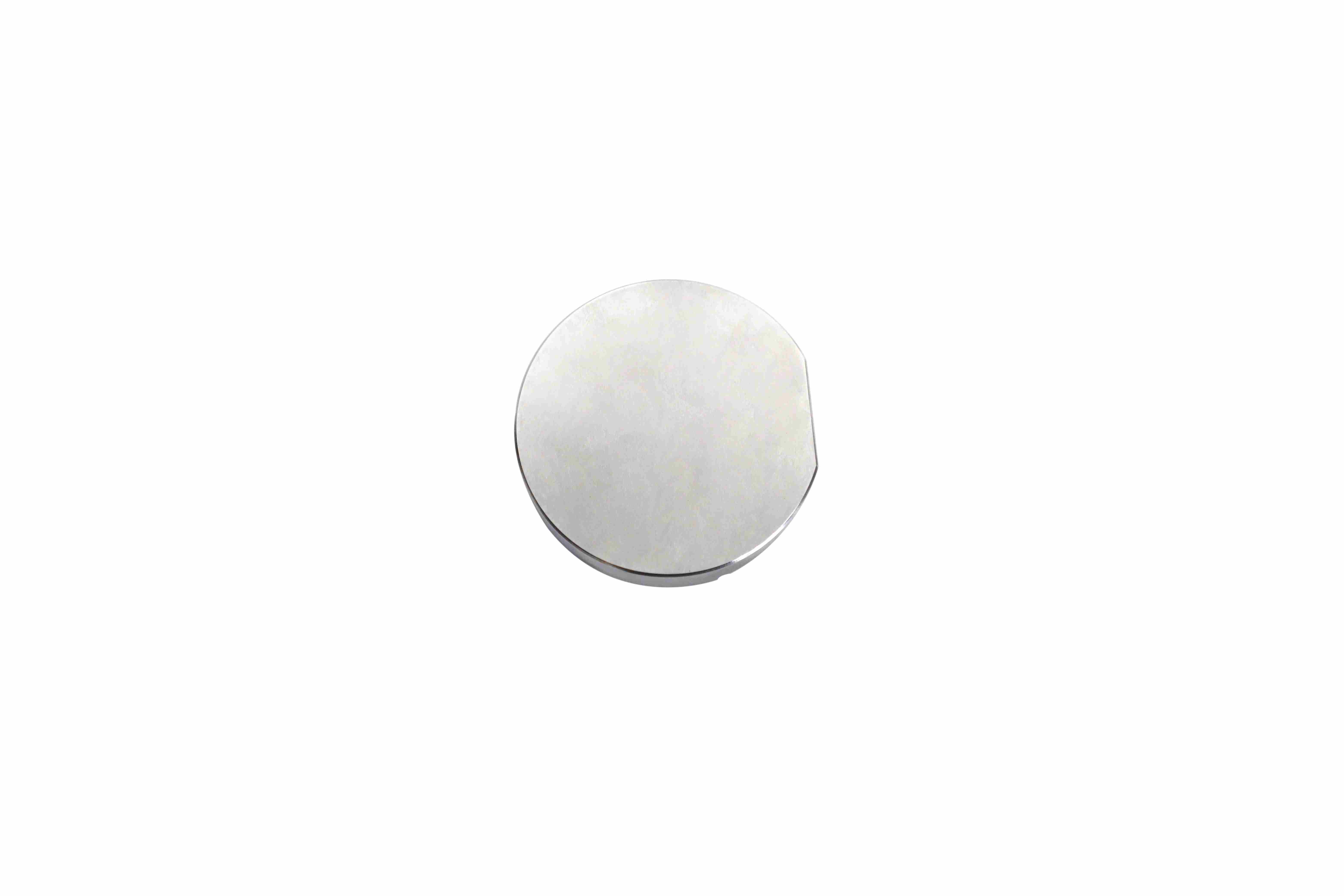

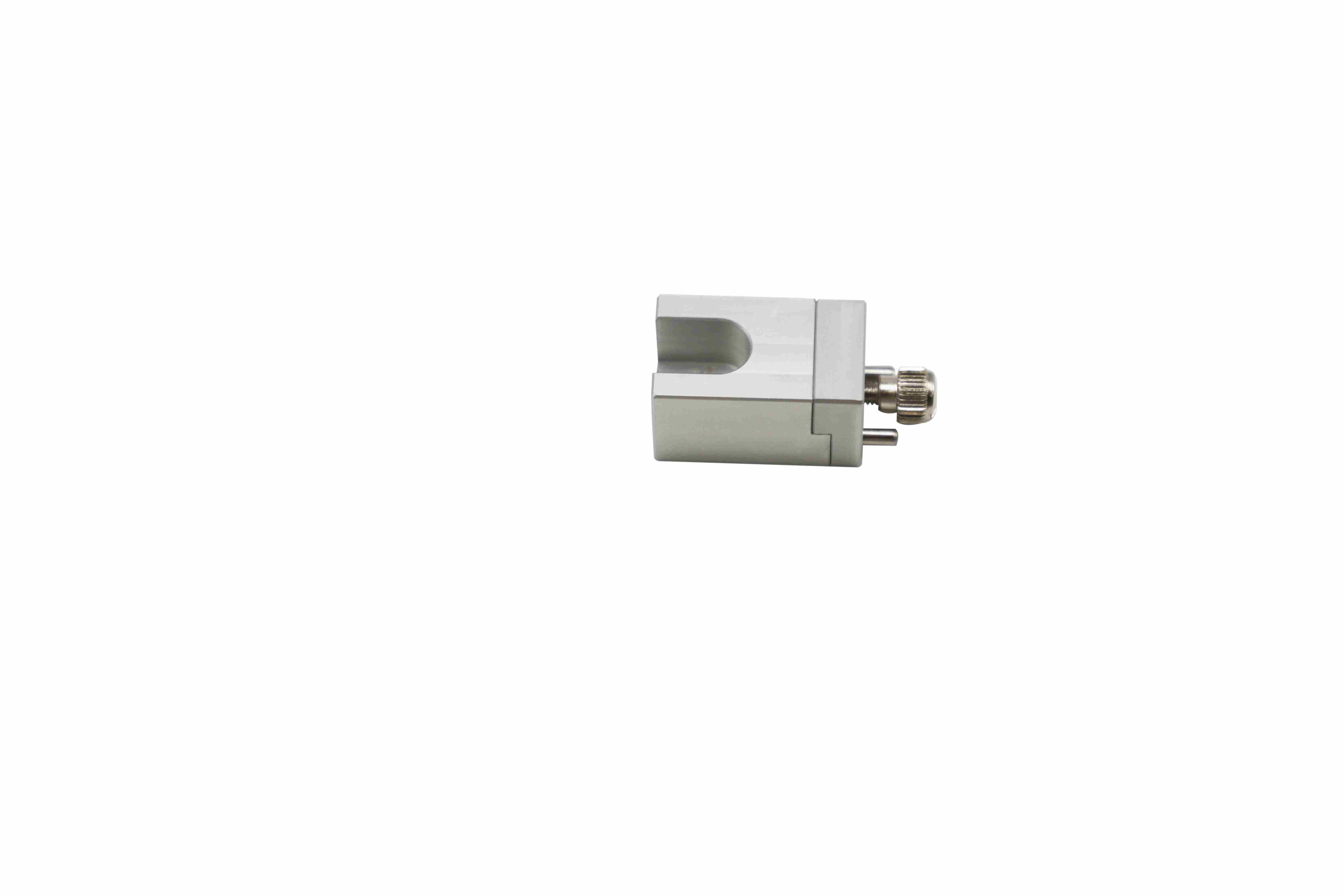

SemiPOL are capable of performing precise grinding and polishing of various materials (integrated circuits, semiconductor wafers, optical components and optical fibers, petrographic structures, precision metal parts, etc.) for microscopic(SEM, FIB, TEM, etc.) analysis. The target accuracy can reach micron level. It is mainly used for parallel grinding and polishing, quantitative thinning, continuous slicing and other precision applications. With more accessories and fixtures, it can make the grinding and polishing of complex and special-shaped parts easier and more convenient.

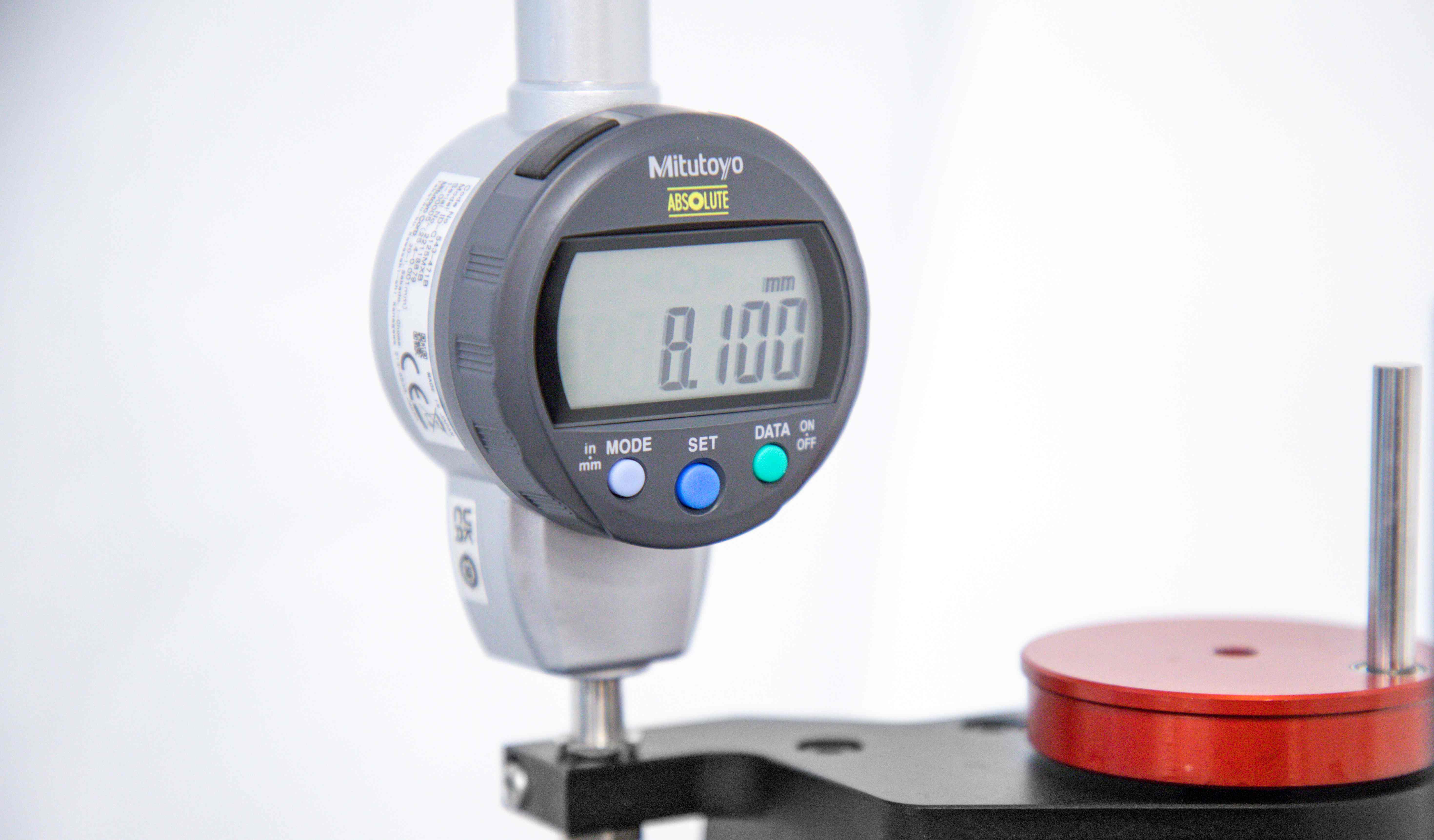

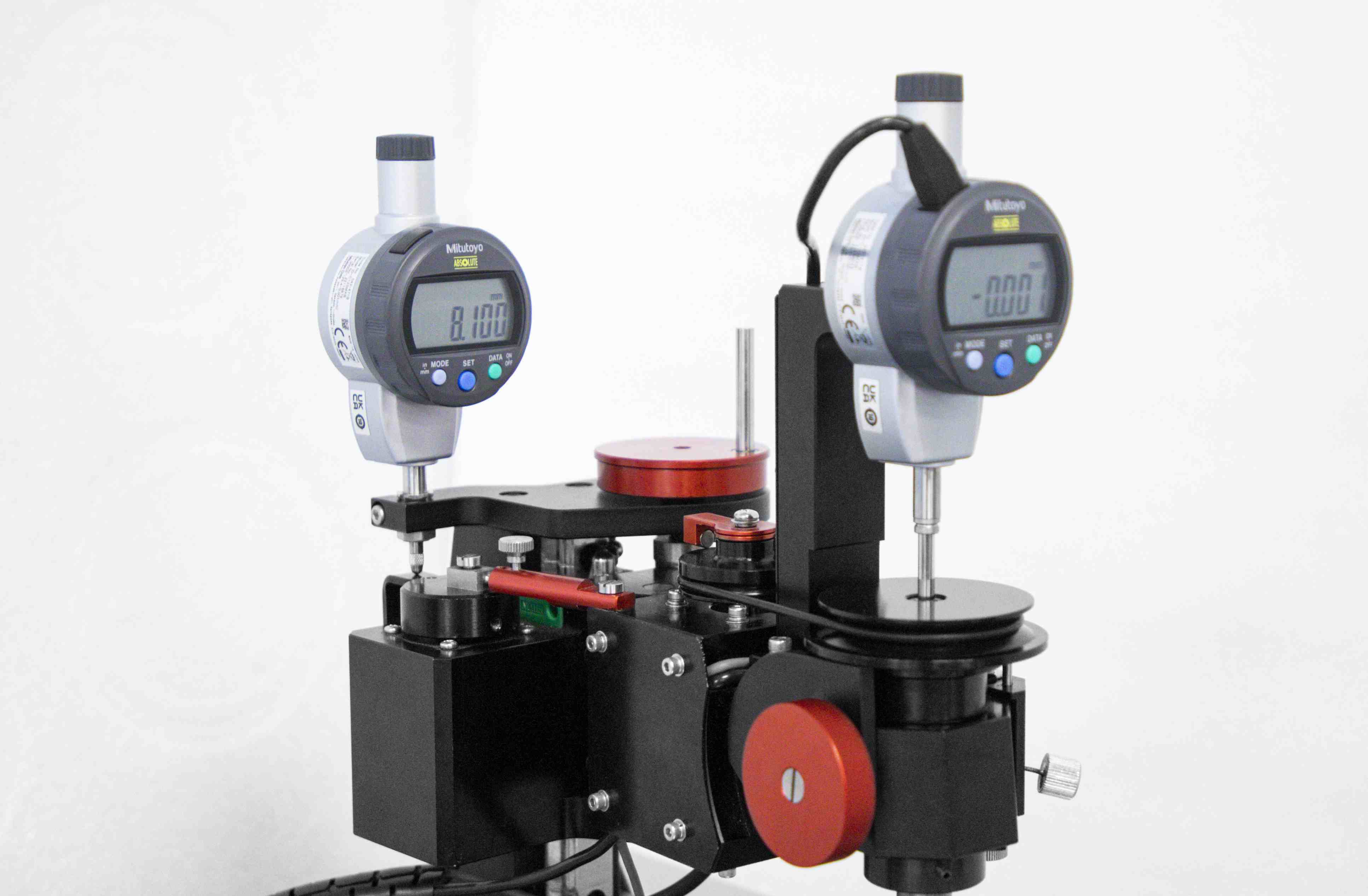

SemiPOL can monitor the amount of material removed in real time, or set the amount of material ground and achieve unattended operation. The servo drive motor can control the rotation speed and swing amplitude of the positioning head to Improve flatness and finish of grinding and polishing.

1、7-inch LCD touch screen panel, displays the removal in real time, the interface is simple and easy to understand, the operation is convenient.
2、16 sets of process parameters can be saved and edited.

3、Size:8"(Ф203mm) or 10"(Ф254mm), flatness < 2um.

4、Sample rotation: 0 ~50rpm, disc rotation: 0 ~350rpm, both are continuously viable speed, both can be forward/reverse.

5、Maximum removal: 10mm, resolution: 1um, stable accuracy: +2um.

6、The servo drive motor (750 W) provides constant high torgue output stably and permanently with a long service life.

7、Built-in automatic temperature sensing cooling fan to reduce failure rate and increase service life.

8、Large diameter side discharge water outlet, not easy to clog and drain quickly.

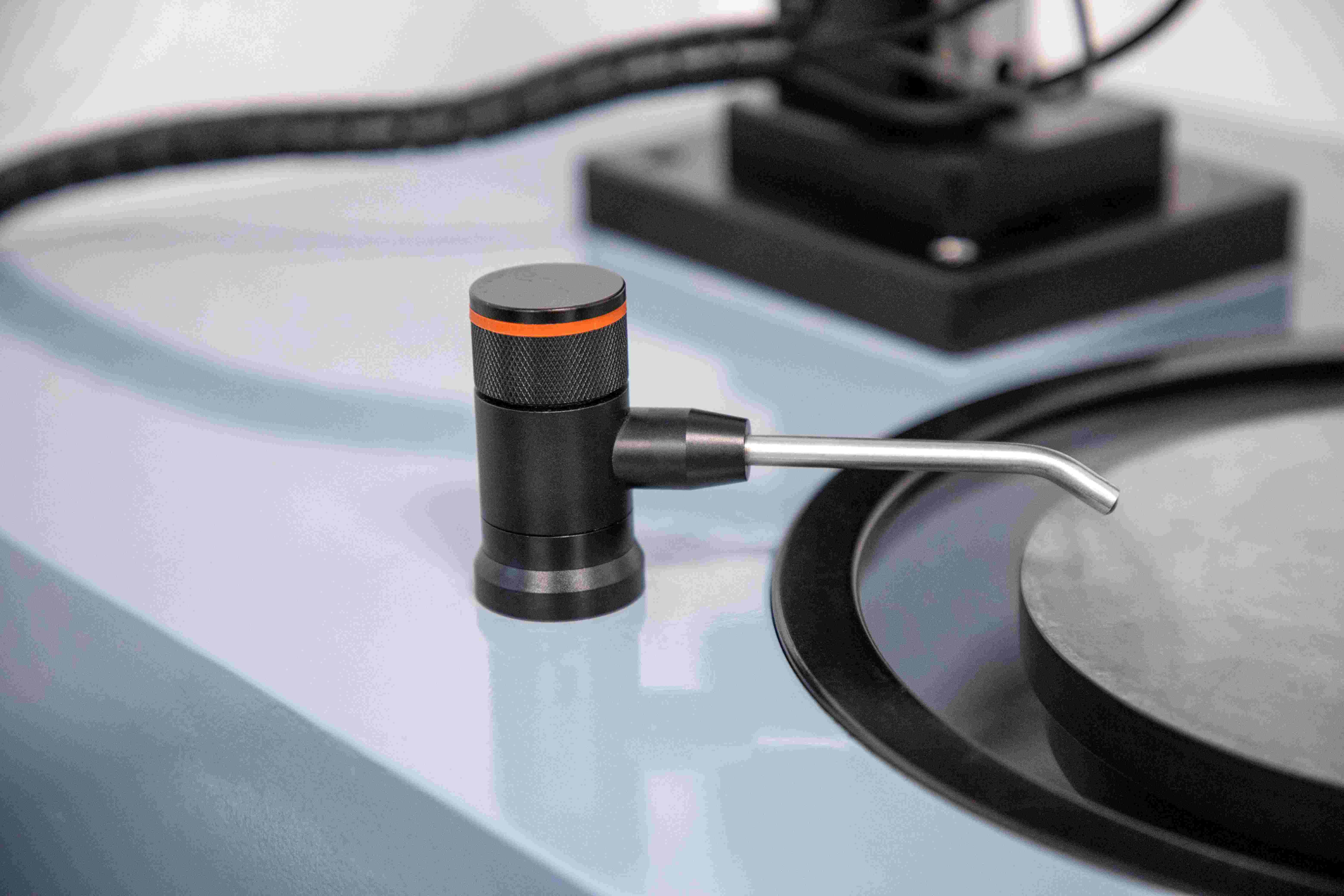

9、Pluggable faucet, convenient for cleaning and maintenance of the disk.

Model		SemiPOL

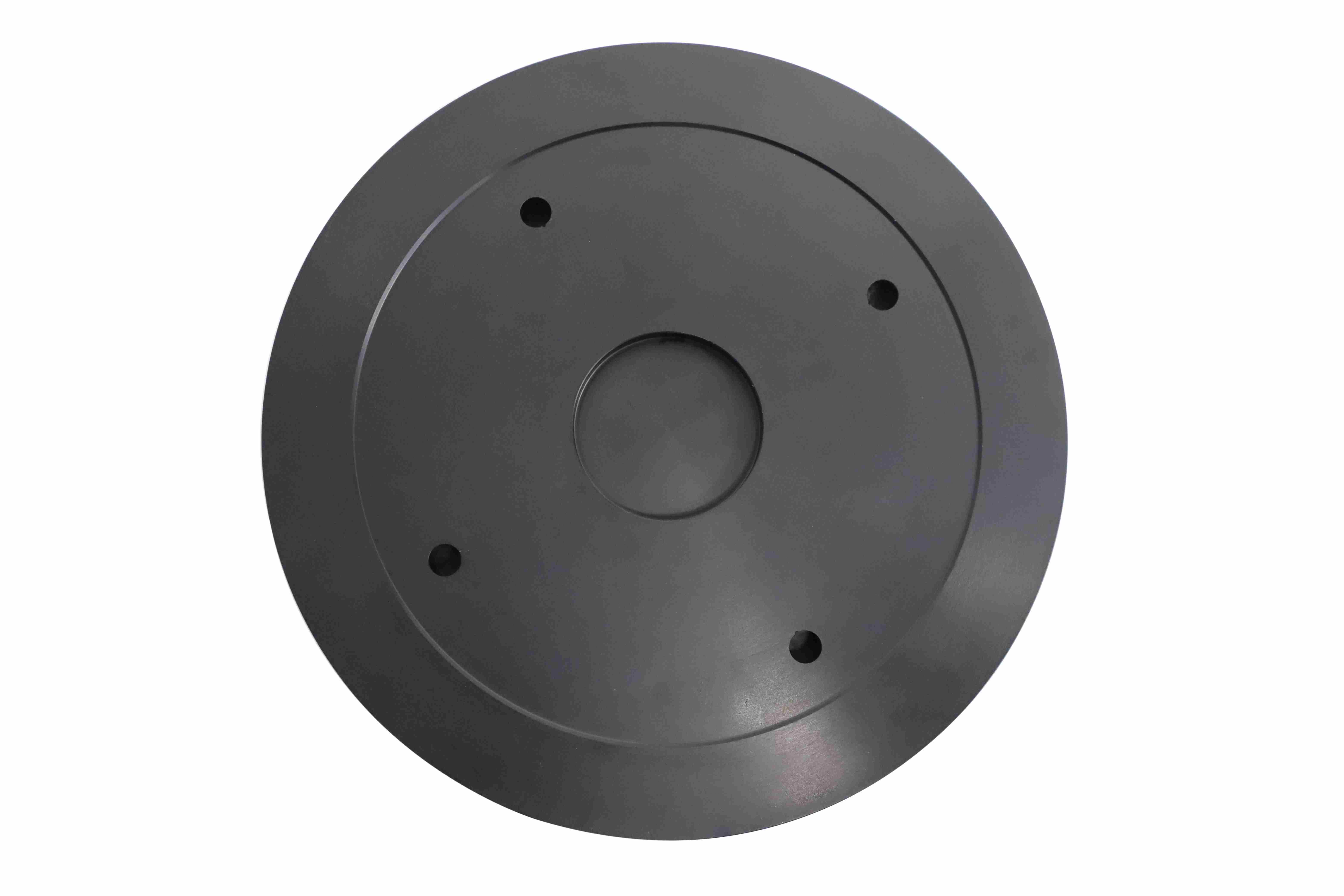

Working disc	Diameter	8-10 inch（203/254mm)
	Speed	0-350rpm，continuously viable speed
	Direction	CW/CCW
	Power	750W
	factory inspection	Flatness < 2um
Sample movement head	Speed	0-50rpm，continuously viable speed
	Direction	CW/CCW
	Rotation	Yes，with adjustable amplitude
	Oscillation	Yes，amplitude and speed are adjustable

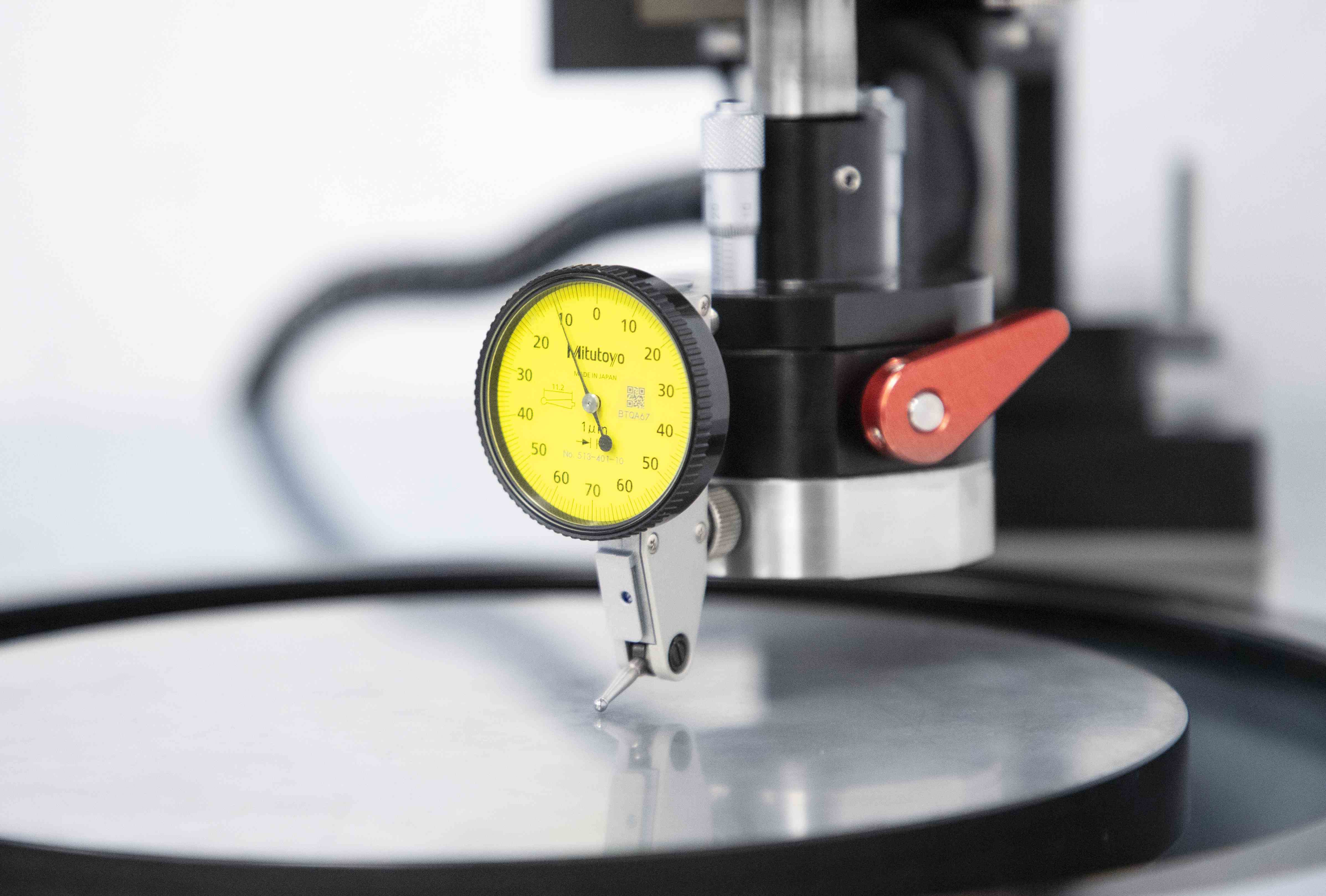

	factory inspection	Perpendicularity to the disk <2um; parallelism <2um
	Maximum removal capacity	10mm
Electricity	Power supply	220VAC
Electricity	Panel	7-inch touch screen
Dimension	WxDxH	700x430x580mm
Weight		57kg
