Beta-500 Automatic Cutting Machine

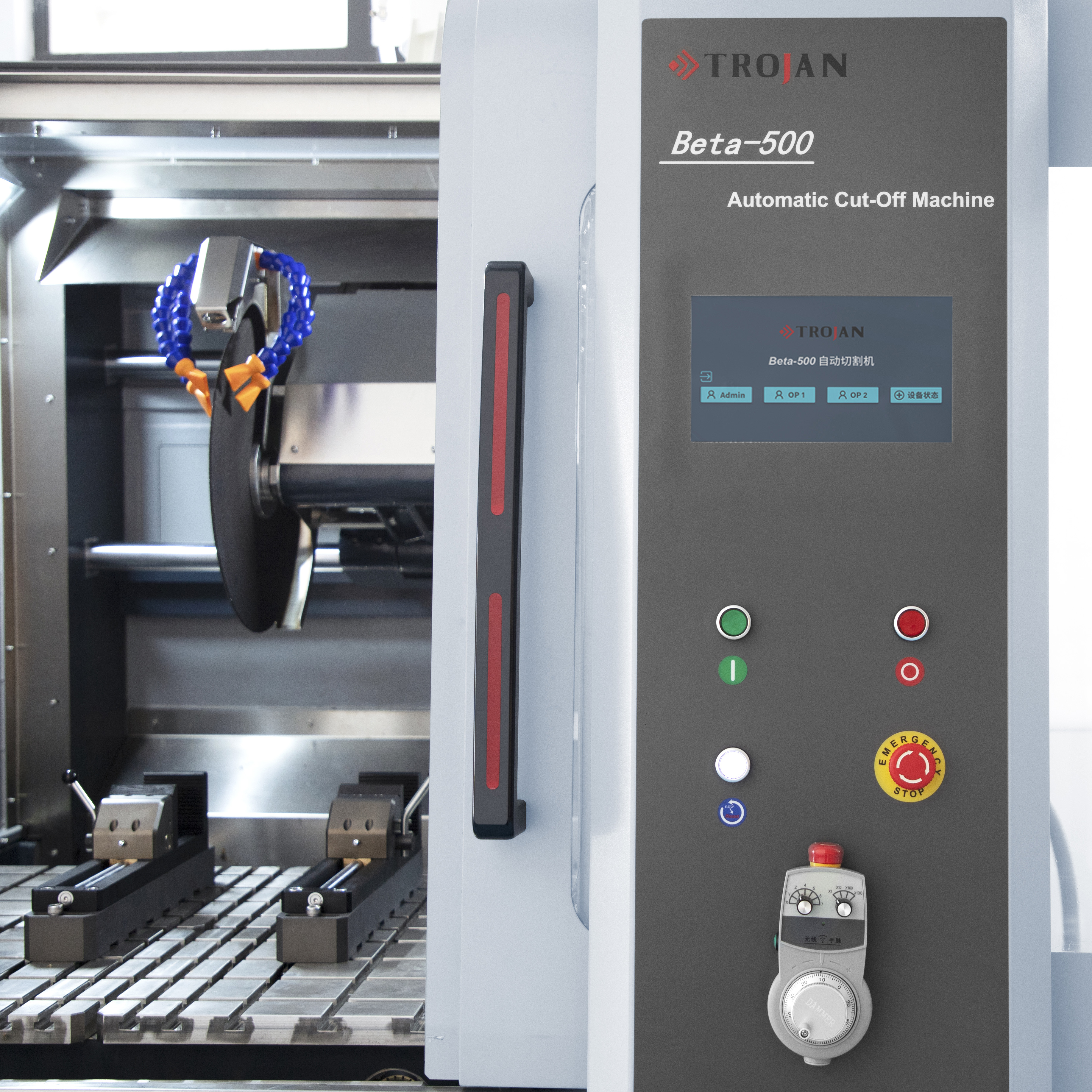

Beta-500 is a fully automatic large-scale vertical cutting machine, suitable for cutting various metal materials, ceramics, quartz glass and petrographic samples. It can realize fully automatic, multi-stage automatic cutting with different thicknesses and different angles of XYZR four axes (the R-axis is an optional function).

Features

1. XYZR four-axis fully automatic control. R-axis (rotation/angle) is optional.

2. It can realize multi-segment continuous cutting on the X-axis (R-axis), with equal thickness (angle), or at any specified position;

3. Extra large work surface and cutting chamber; work surface size reaches 728x832mm. The cutting chamber size reaches 1248x1220mm and the height is 900mm.

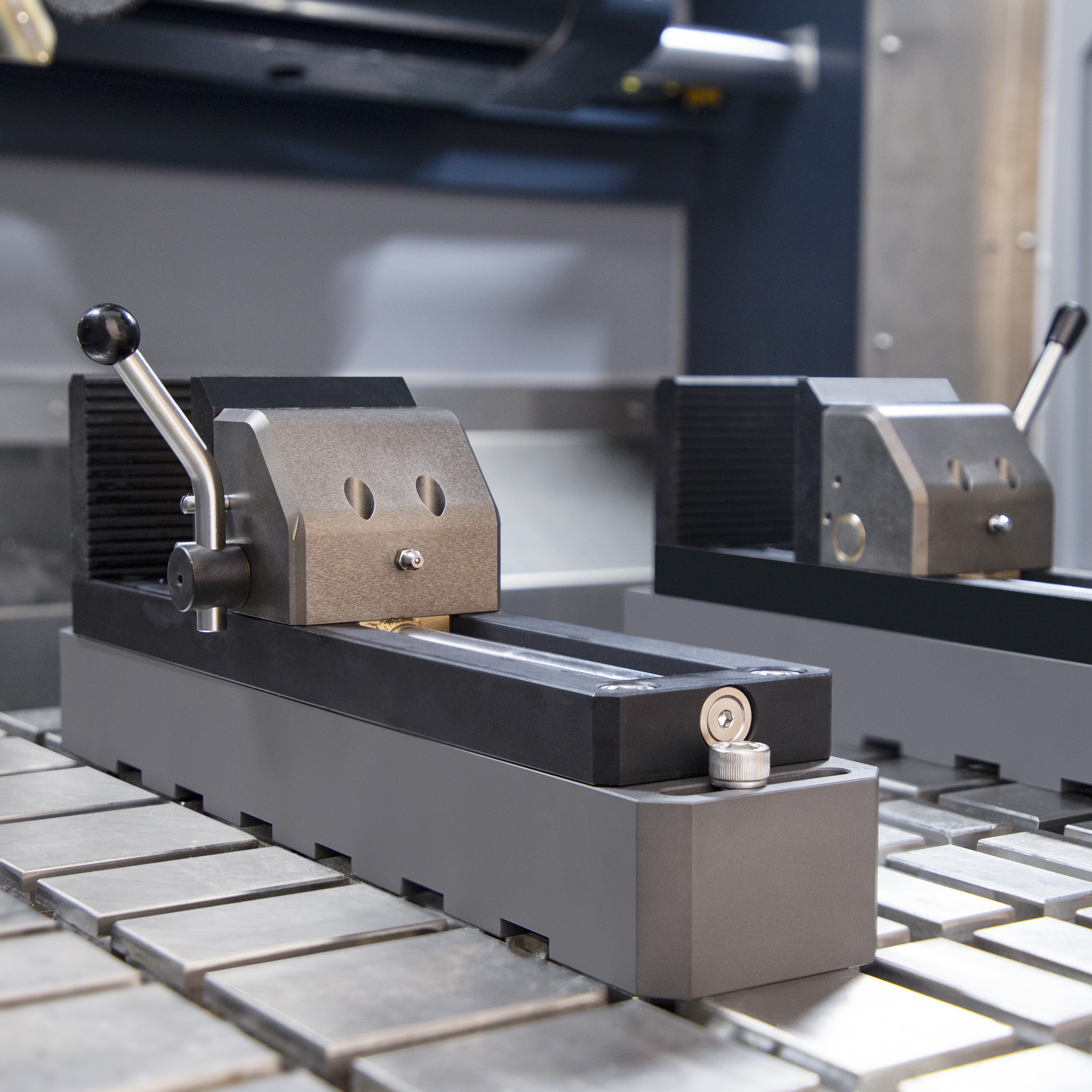

4. Can clamp ultra-long specimens that run through the left and right sides;

5. Simulation function of cutting route;

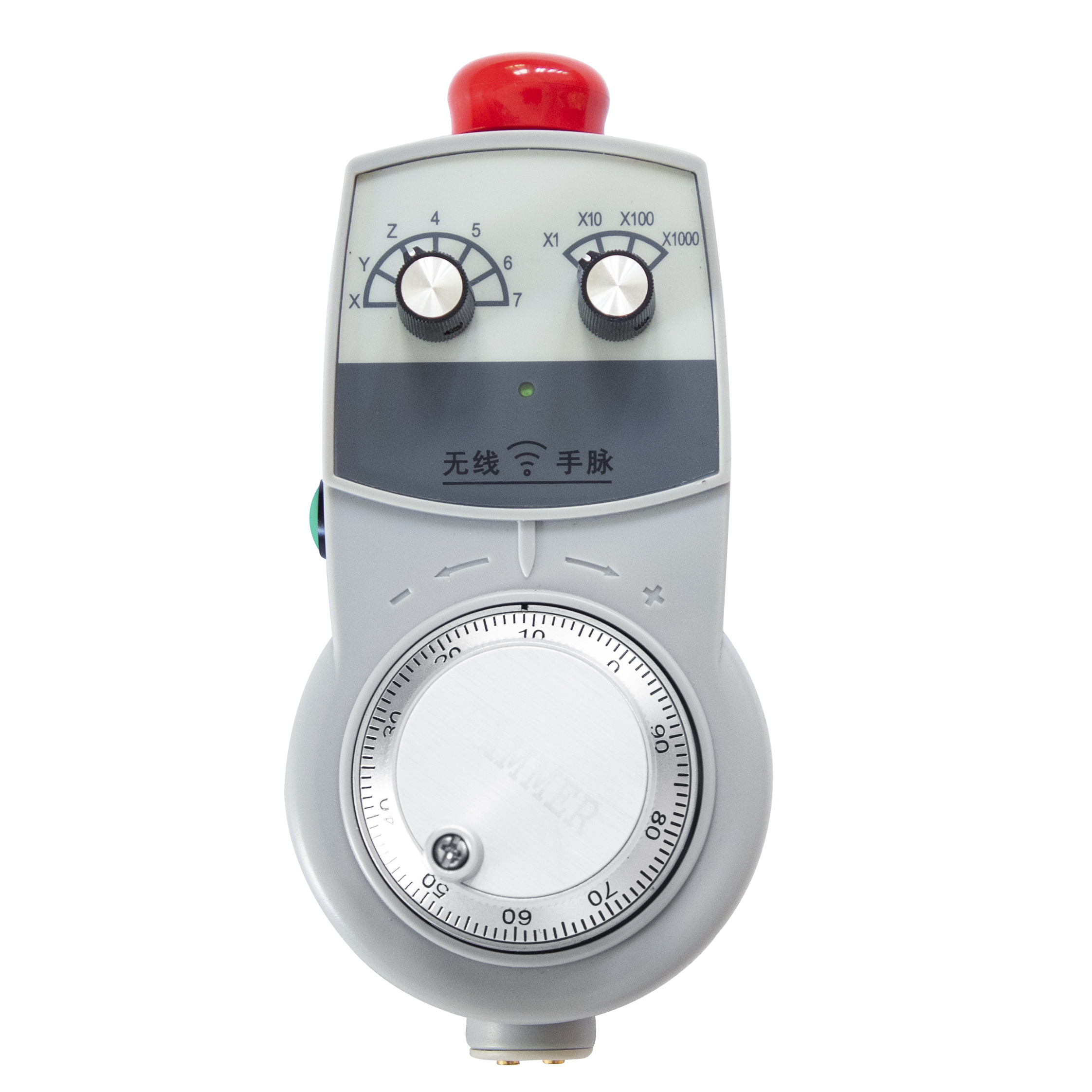

6. Equipped with a wireless handwheel to control the movement of four axes to achieve rapid tool setting;

7. The one-piece cast aluminum base and reliable powder coating ensure durability and no rust;

8. 10-inch large touch screen;

9. Floor standing water tank with large volume, easy to remove for cleaning;

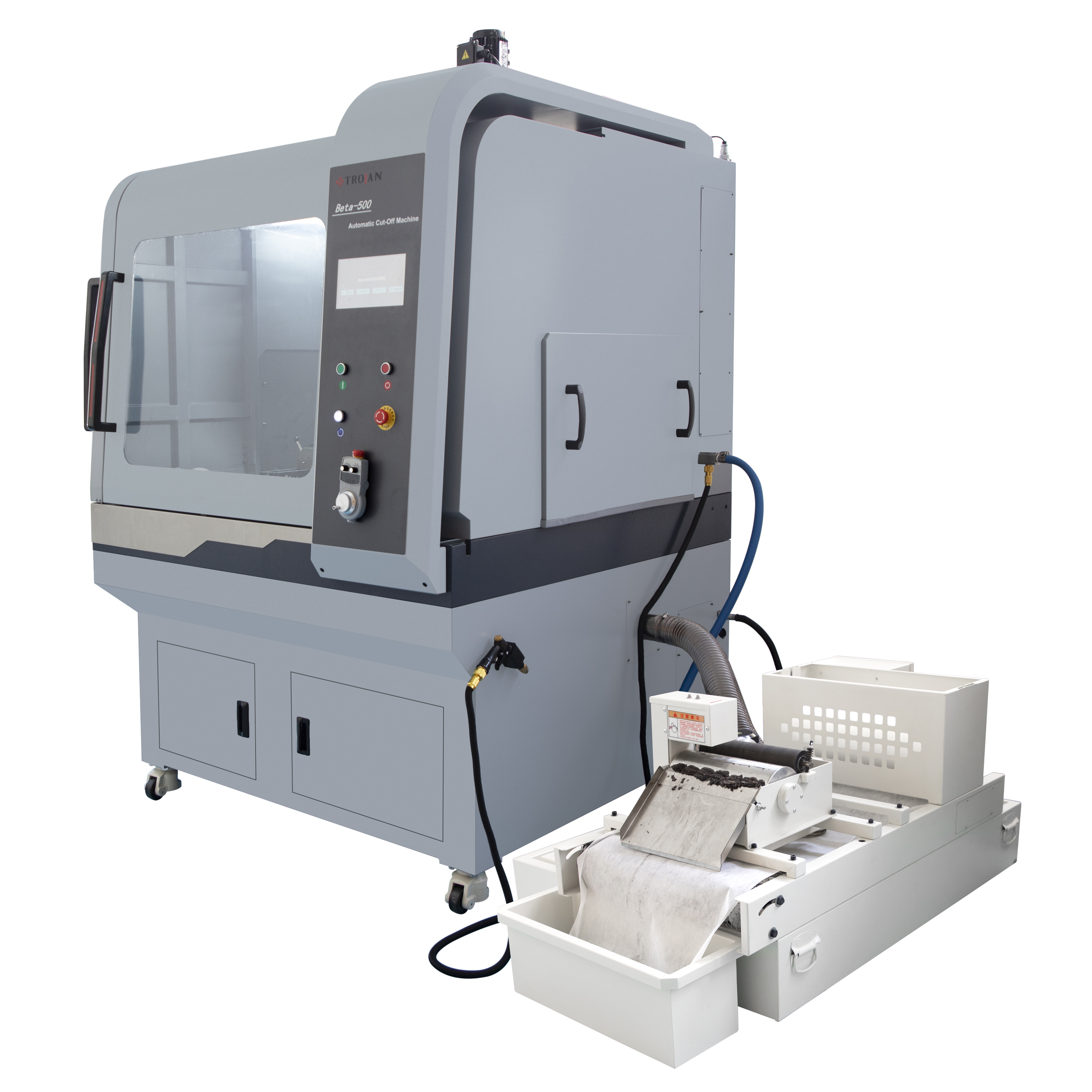

10. Equipped with magnetic separator and paper tape filtration system;

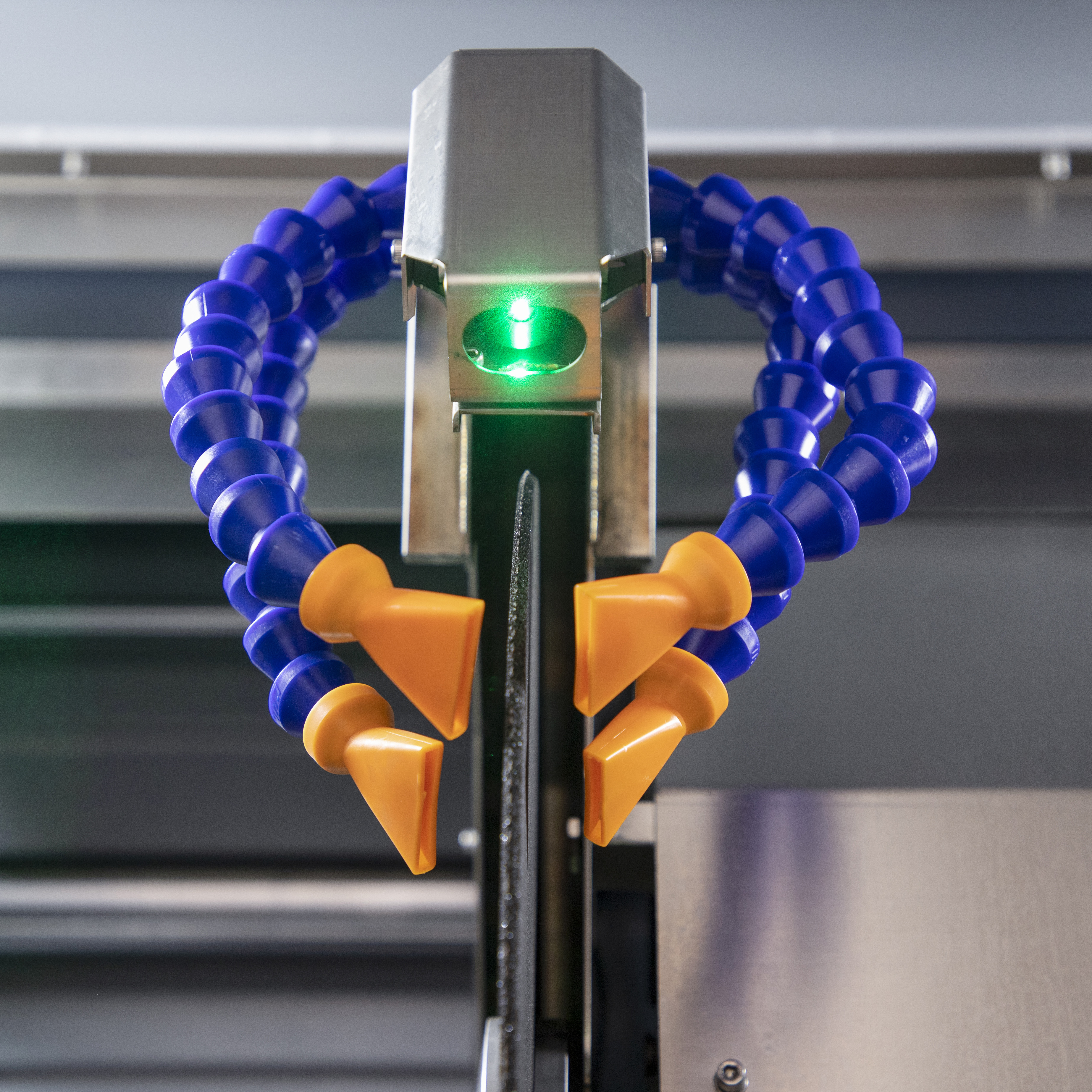

11. Laser tool setting device.

Technical parameter

Model		Beta-400MA

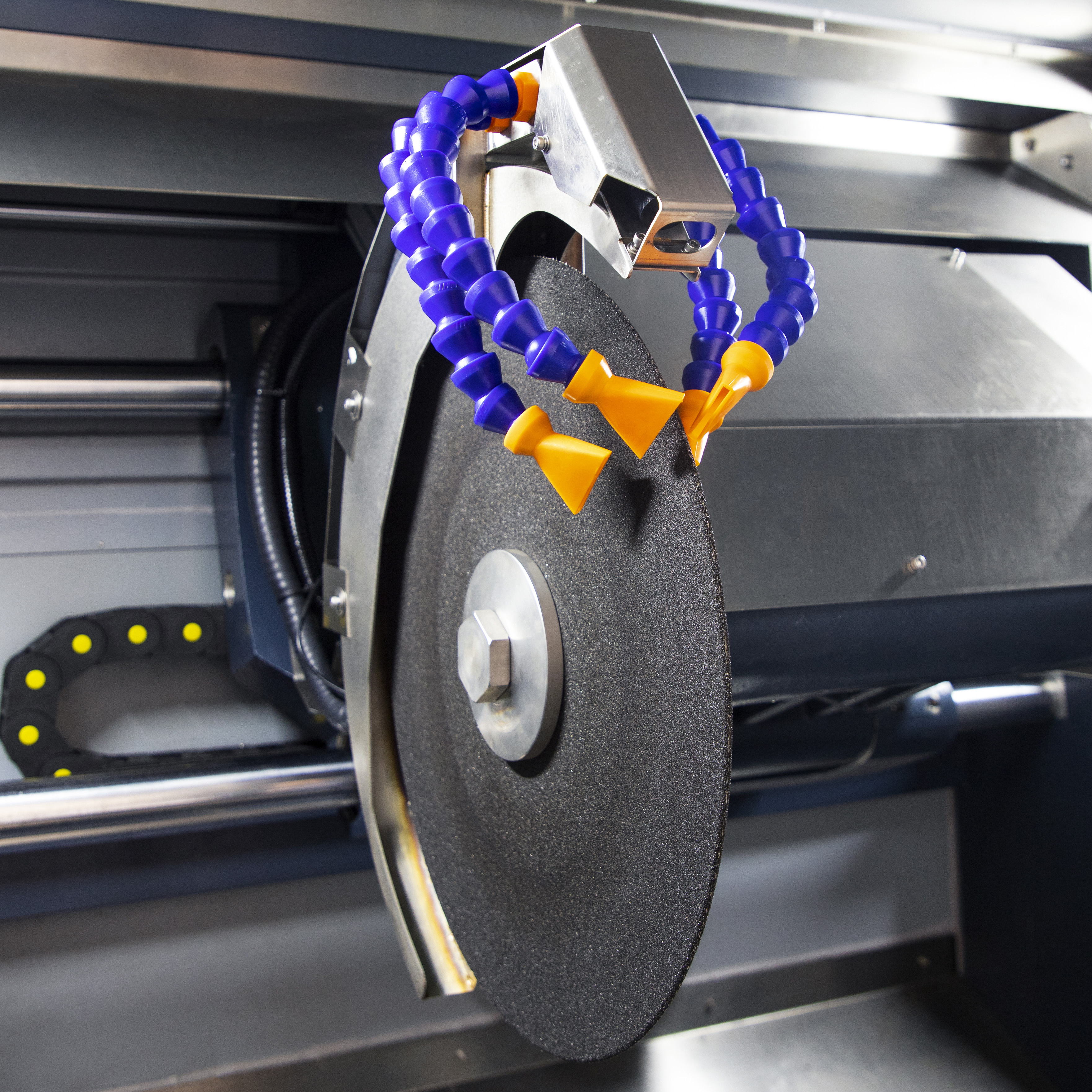

Cutting blade	Speed	500-2500rpm
	Diameter	Φ508mm
	Center hole	Φ32mm
Electronic	Input	3x380V/50Hz+Neutral+Ground
Electronic	Cutting Power	15KW(S1)
Cutting capacity	Maximum diameter	Φ190mm
Cutting capacity	Maximum square section	190x360mm
Smart cutting	Cutting mode	Vertical cutting/horizontal cutting/segment cutting/continuous cutting/angle cutting (optional)
Smart cutting	Feeding method	Constant speed cutting/ Pulse cutting/ Automatic speed control
Table	Dimension	832x728mm(WxD)
	T-Slot Size	12mm
	Travel	Z-direction (vertical): 330mm, Y-direction (front-back): 500mm; X-direction (left-right): 550mm
Angle Cutting (Optional)	Bench size	Φ600mm
Angle Cutting (Optional)	Number of automatic cuts	20
Recirculating Tank	Capasity	200L
	Dimensions	1500x900x650mm(WxDxH)
	Connector	Inlet: Φ19 inner diameter high-pressure pipe; Outlet: Φ80 inner diameter hose
	Flow rate	100L/min
Filtration	Method	Paper tape + magnetic separator
Filtration	Accuracy	30um

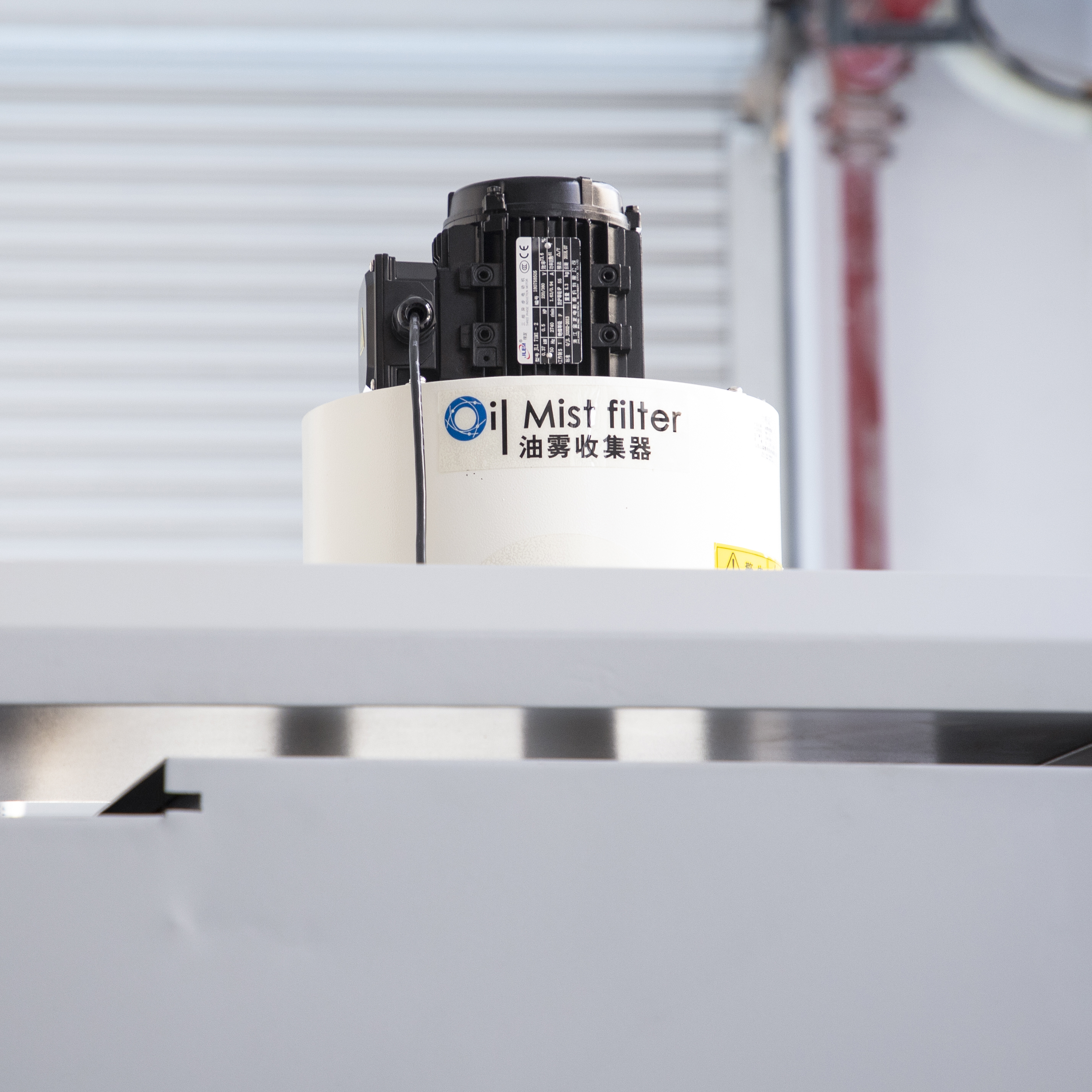

Oil mist collector (optional)	Power	0.37KW
Oil mist collector (optional)	Air volume	600m³/h
Weight	Host	1450kg
Weight	Recirculating Tank	155kg
