What are the essential components of metallographic cold mounting consumables?

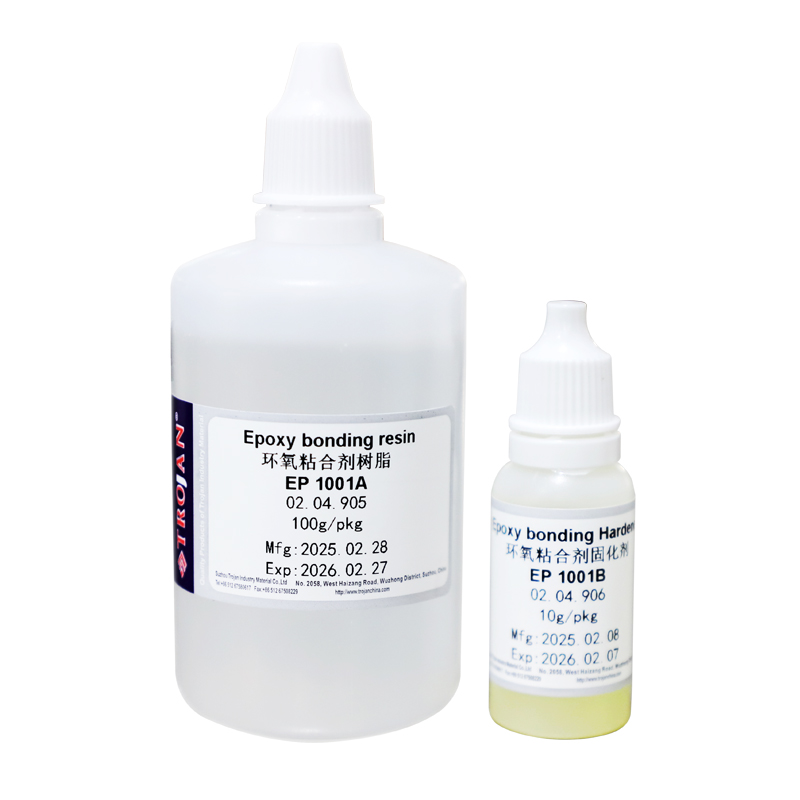

Resin or Embedding Material: The primary component is a resin or embedding material that surrounds and encapsulates the sample. This resin can be epoxy-based, acrylic-based, or other polymers. It's selected based on factors such as sample type, hardness, and compatibility with subsequent processing steps.
Hardener or Catalyst: To initiate the polymerization process of the resin, a hardener or catalyst is added. This chemical reaction causes the resin to solidify and form a stable matrix around the sample.
Fillers: Fillers are added to the resin mixture to modify its properties. These can include materials like glass beads, minerals, or metal powders. Fillers can enhance the embedding material's hardness, thermal conductivity, or other characteristics.
Dyes or Pigments: In some cases, dyes or pigments may be added to the mixture to provide contrast and facilitate differentiation between the sample and the embedding material. This is particularly useful during subsequent polishing and microscopic analysis.
Release Agents: Release agents are applied to the sample holders or molds to prevent the cured resin from sticking to the holder or mold surface. This ensures easy removal of the mounted sample after the resin has cured.
Mounting Cups or Molds: These are containers or molds in which the sample and resin mixture is placed for curing. They come in various sizes and shapes to accommodate different sample sizes and types.
Mixing Tools: Proper mixing of the resin and other components is essential to achieve consistent results. Mixing tools like spatulas or mechanical mixers are used to thoroughly blend the components.
Degassing Equipment: To remove air bubbles trapped in the resin mixture, degassing equipment like vacuum chambers are often used. This ensures a bubble-free and uniform embedding material.
Curing Equipment: Once the sample is embedded in the resin mixture, curing equipment such as ovens or curing stations are used to facilitate the polymerization process. The curing conditions (temperature and time) are determined by the resin manufacturer's guidelines and the specific requirements of the sample.
Safety Gear: Given that some of the components used in metallographic cold mounting consumables can be hazardous, appropriate safety gear such as gloves, goggles, and lab coats should be worn during the preparation process.
How do factors like particle size, viscosity, and curing time play a role in the selection of appropriate metallographic cold mounting consumables for different types of samples?
Particle Size:
The particle size of the sample being mounted is crucial because it affects how well the sample is embedded within the resin. Samples with larger particle sizes might require embedding materials with larger filler particles to provide better mechanical support and ensure even distribution of the sample particles within the resin matrix. Conversely, samples with fine particles or powders might necessitate embedding materials with finer fillers to achieve proper dispersion and prevent settling during curing.
Viscosity:
Viscosity refers to the thickness or fluidity of the embedding material. The viscosity of the resin should be chosen based on the sample's characteristics. For samples with complex shapes or intricate features, a lower viscosity embedding material might be preferred as it can flow into tight spaces more effectively. Samples with irregular surfaces might benefit from lower viscosity materials that can better conform to the sample's contours. On the other hand, samples with high porosity or cracks might require embedding materials with higher viscosity to prevent excessive penetration and ensure proper support.
Curing Time:
Curing time is the duration required for the resin to harden and reach its final state. Different samples and applications might demand varying curing times. Rapid curing resins are suitable when quick sample preparation is needed, as they reduce processing time. For more delicate samples or those sensitive to temperature, slower curing resins might be preferred to minimize thermal stress during the curing process. Moreover, the curing time should align with the laboratory's workflow to ensure efficient sample preparation.
Sample Hardness and Abrasiveness:
The hardness and abrasiveness of the sample influence the choice of embedding material and fillers. Harder samples might require embedding materials with higher hardness to prevent excessive wear during subsequent grinding and polishing stages. If the sample is abrasive, the embedding material should ideally be resistant to abrasion to ensure that both the sample and the material maintain their integrity throughout the preparation process.
Chemical Compatibility:
Certain samples might be chemically reactive, requiring embedding materials that are chemically inert to prevent any unwanted reactions. Compatibility is essential to ensure that the embedding material does not adversely affect the sample's microstructure or introduce artifacts during the curing process.
Microstructural Preservation:
The choice of embedding material should prioritize maintaining the sample's microstructure integrity during the mounting and preparation process. A suitable embedding material will minimize distortion, cracking, or other forms of alteration to the sample's original characteristics.
Analytical Techniques:
The intended analytical techniques, such as microscopy or spectroscopy, can also influence the choice of consumables. Samples intended for certain techniques might require specific embedding materials that offer optimal clarity, contrast, or other properties for accurate analysis.
