Custom MT-2H Semi-Automatic Hot Mounting Machine Manufacturers, Factory - Trojan (Suzhou) material technology Co., Ltd.

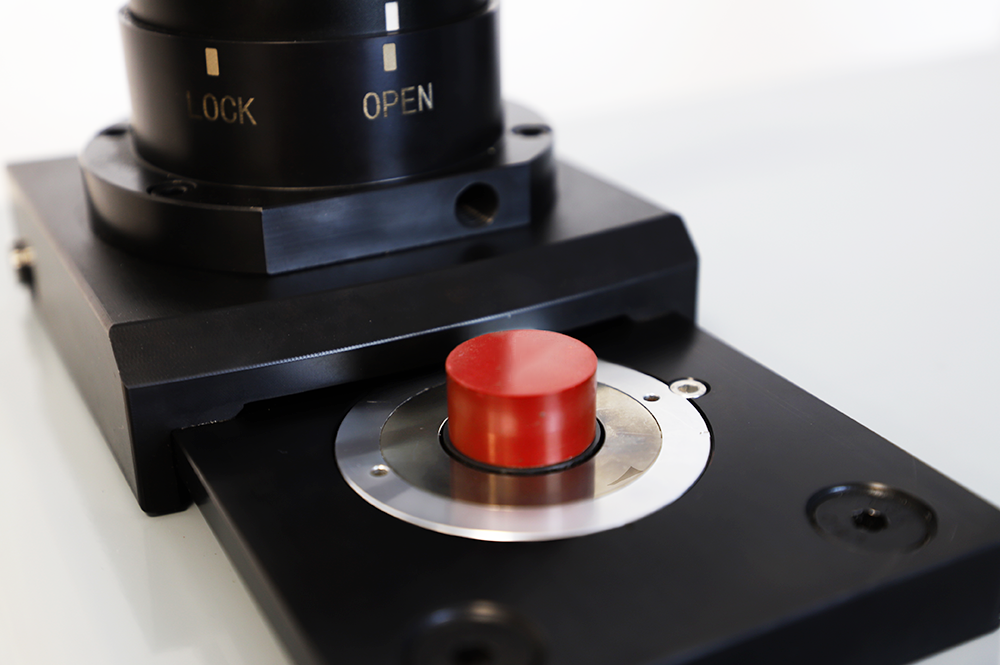

MT-2H Semi-Automatic Hot Mounting Machine

Product Description
MT-2H is a semi-automatic hot mounting machine, suitable for thermoforming of different materials, such as epoxy resin, bakelite powder, acrylic powder, etc. Adopting dual-sleeve design, the left and right sleeves can be controlled individually to meet the needs of batch mounting for different sizes of specimens.

Features

1. Sliding caps for easier and safer operation;

2. Low running noise and small overall size;

3. The 7-inch touchscreen has a clean, easy-to-use interface;

4. Real-time display of temperature and pressure changes;

5. The LED light strip indicates the running status;

6. Multiple sets of operating parameters can be stored.

Technical Parameters

Model		MT-2H
Electric	Power supply	220V，50Hz (110V customizable)
Electric	Power	4.0Kw
Sample	Dimension	Φ25.4mm, Φ30mm, Φ32mm, Φ40mm, Φ50mm (or customized)
Sample	Max. height	80mm
Heating	Heating range	~200˚C
	Holding time	0 ~ 30Min
	Heating part	Surrounded
Pressurization	Pressure range	0~300Bar (Related to the size of the sleeve)
Cooling	Cooling method	Automatic mode: by time/temperature; manual mode
	Cooling Rate	High, medium and low cooling rate
	Diameter of inlet pipe	OD=Φ8mm, water pressure<0.3MPa
	Diameter of outlet pipe	ID=Φ12mm
Control panel		7-inch touch screen
Noise	Measured at 1 meter	<60dB
Operating environment	Temperature	-20˚C - 60˚C
Operating environment	Humidity	0-95%RH
Dimension	WxDxH	660x500x500mm
Weight		58Kg
