Product Description

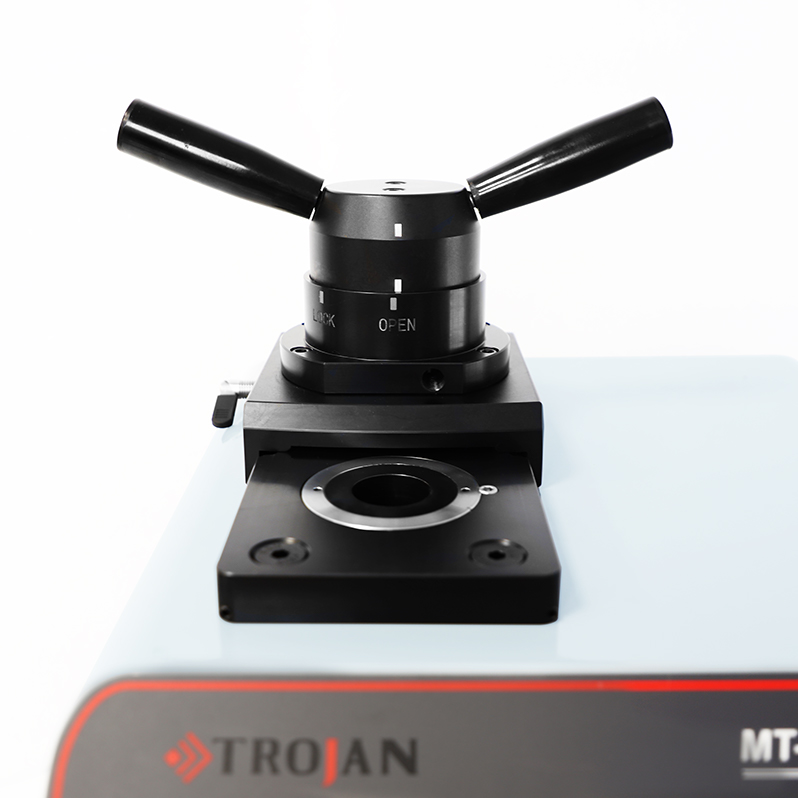

MT-1H is a single-sleeve semi-automatic hot mounting machine with a 7-inch touch screen and an easy-to-operate interface. It adopts hydraulic pressurization method and is suitable for thermoforming of different materials, such as epoxy resin, bakelite powder, acrylic powder, etc. It has the characteristics of strong applicability, high efficiency and good quality.
Features
1. 7-inch touch screen, simple and easy to understand operation interface;
2. 15 groups of commonly used programs can be saved, heating power can be set, real-time display of change curve in temperature and pressure;
3. The cooling temperature or cooling time can be used as the end condition;
4. The bottom is equipped with a collection tank;

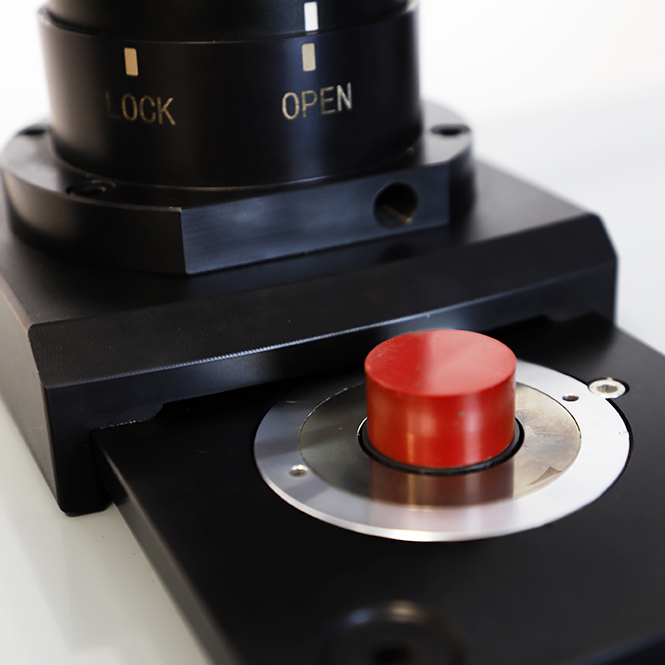

5. Horizontal push-pull sliding cover makes locking easier and more convenient;
6. Heating overload protection against overheating;
7. Quickly replaceable sleeves for more flexible use.
Technical Parameters
|
|
MT-1H |
|
Power supply |
220V, 1P, 2.5 Kw, 15A |
|
Heating Power |
2.0KW |
|
Heating control |
Power can be set (10-100%) |
|
Sample size |
Φ30mm( Standard), Φ25.4, Φ32, Φ40, Φ50mm(Optional) |
|
Heating Range |
100-200˚C |
|
Holding Time |
0 ~ 99min |
|
Max.Pressure |
0 - 500Bar ( Depends on cylinder size ) |
|
Heating Position |
Surround |
|
Cooling Mode |
Automatic mode: by time/temperature; manual mode |
|
Cooling Rate |
High, medium and low cooling rate |
|
Control Panel |
7-inch touch screen |
|
Water inlet |
OD=Φ8mm connecter，pressure<0.3MPa |
|
Water outlet |
OD=Φ12mm connecter |
|
Environment Temperature |
-20˚C - 60˚C |
|
Environment Humidity |
0-95%RH |
|
Dimension (W*D*H) |
400*509*537mm |
|
Weight |
48kg |
Basing on China, TROJAN has a strong focus on international sales, for now ,TROJAN has sold MT-1H Auto Mounting Press to more than 40 countries, such as Europe, U.S.A, Korea and Southeast Asia.
