What are some essential metallographic mounting accessories used in sample preparation for microscopy and analysis?
Mounting Press: A mounting press is used to encapsulate the metal sample in a thermosetting resin, creating a solid block for further preparation. It applies heat and pressure to cure the resin, ensuring a secure and uniform sample mount.
Mounting Molds: These are designed to hold the resin and sample during the curing process in the mounting press. They come in various sizes and shapes to accommodate different sample types and sizes.

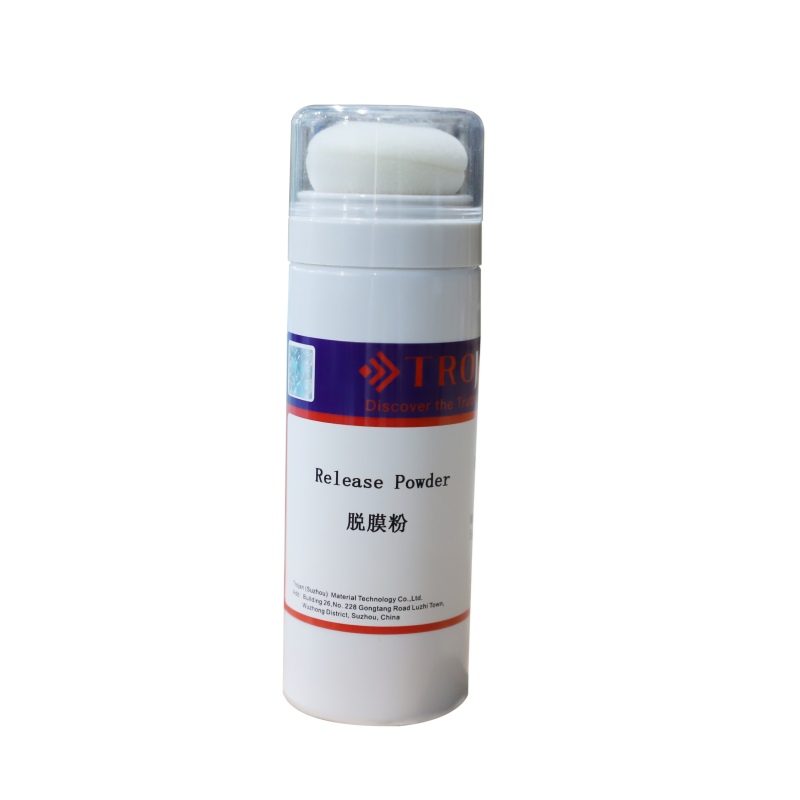

Mounting Consumables: These include release agents, such as mold release sprays or powders, that prevent the resin from sticking to the mold. They also encompass filler materials like acrylic or glass spheres, which aid in achieving flat, uniform surfaces during the mounting process.
Mounting Accessories for Compression: In cases where delicate or irregularly shaped samples are being mounted, accessories like compression pads and shims are used to evenly distribute pressure during the curing process, preventing distortion.
Mounting Resins: Thermosetting resins, such as epoxy or acrylic, are used to encapsulate the metal sample. These resins offer strong adhesion, minimal shrinkage, and excellent clarity, ensuring accurate microscopic analysis.

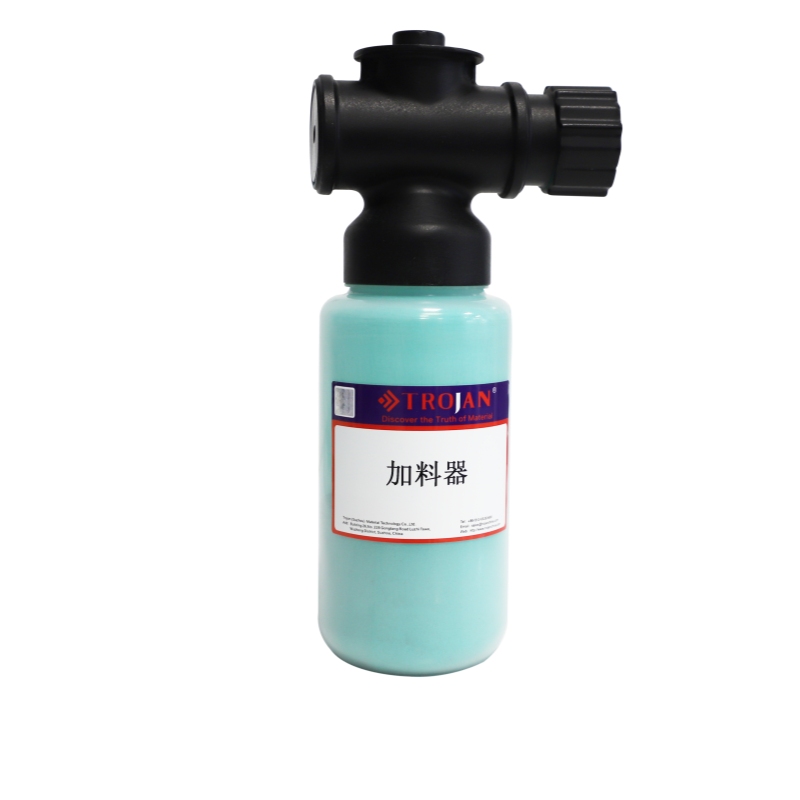

Mounting Supplies: These encompass various tools like spatulas, mixing cups, and dispensers, which are essential for accurately measuring, mixing, and transferring the resin into the molds.
Cooling Systems: Some mounting processes require controlled cooling systems to expedite resin curing and minimize the risk of thermal damage to the sample.
Grinding and Polishing Equipment: While not directly part of the mounting process, grinding and polishing machines, along with related abrasives and lubricants, are crucial for preparing the mounted metal sample for microscopy. They ensure a smooth, flat surface that is suitable for accurate analysis.
Labeling and Identification Tools: Accessories like metallographic labels and markers are used to mark crucial information on the sample mount, such as sample name, orientation, and preparation details.
Safety Equipment: Personal protective equipment (PPE) such as gloves, safety glasses, and lab coats are essential to ensure the safety of individuals handling the potentially hazardous materials used in metallographic sample preparation.
How do metallographic mounting accessories contribute to the quality of sample mounts and subsequent microscopic examination?
Uniform Encapsulation: Metallographic mounting accessories, such as mounting molds and presses, help achieve uniform and consistent encapsulation of the metal sample in resin. This ensures that the sample is properly embedded and securely held in place, minimizing the risk of sample detachment or movement during preparation and analysis.
Preventing Distortion: Accessories like compression pads and shims aid in evenly distributing pressure during the curing process. This helps prevent distortion of delicate or irregularly shaped samples, maintaining the sample's original morphology and integrity.
Minimizing Artifacts: Properly selected and utilized mounting resins, along with appropriate release agents, help minimize the formation of air bubbles, voids, or resin artifacts. These imperfections can adversely affect the clarity and accuracy of microscopic images and analysis.
Flat Surface Preparation: Mounting consumables like filler materials assist in achieving flat and uniform surfaces on the sample mount. This is crucial for accurate microscopic examination, as uneven surfaces can lead to focal plane inconsistencies and image distortion.
Secure Handling: Well-designed mounting molds and accessories ensure that the sample is firmly held in place, reducing the risk of damage during subsequent grinding, polishing, and handling steps. This is particularly important for maintaining sample integrity throughout the preparation process.
Orientation Control: Some mounting accessories provide features for marking or controlling the orientation of the sample. This allows researchers and analysts to position the sample in a specific direction, enabling targeted analysis of particular microstructural features or areas of interest.
Efficient Sample Preparation: The use of appropriate tools and supplies, such as mixing cups and spatulas, facilitates accurate measurement and proper mixing of resin. This efficiency streamlines the sample preparation process, ensuring reproducibility and reducing the likelihood of human errors.
Accurate Labeling: Proper labeling and identification tools ensure that essential information about the sample, such as its origin, preparation method, and orientation, is recorded directly on the sample mount. This information is crucial for accurate analysis and documentation.
Safety and Compliance: Mounting accessories also contribute to laboratory safety by providing tools for handling potentially hazardous materials, promoting the use of personal protective equipment, and ensuring compliance with safety protocols.
